Description of this Two way recognition voice prompter

Two way recognition prompter,The detection mode of this productis using the technology of infrared pyroelectric principle to induce human activity information. When someone enters the induction range, it can accurately identify the human activities. It is like a cat's eyes, not depending on light. Even in the dark environment, it can work stably and reliably, overcoming the shortcomings of light induction.

Two way voice prompter,manufacturer,supplier,factory,Exporter,price，support DIY function. Users can choose parts according to the specific application.One of the main characteristics is using our company’s mature technology of human body induction. When detecting the human body passing it can identify direction accurately and will give warm prompt, warning and greeting at the first time. According to the different applications, different voice can be replaced at any time to achieve the different needs of play effect. This product has been used in the exhibition hall, subway station, elevator, gated prompt, automatic loudspeaker etc.

10-way voice prompter，F(xiàn)or your better understanding of installation and configuration, please read this instruction carefully.

Advantage of this Two way recognition voice prompter

★Adopt infrared sensor technology, automatically trigger to play audio.

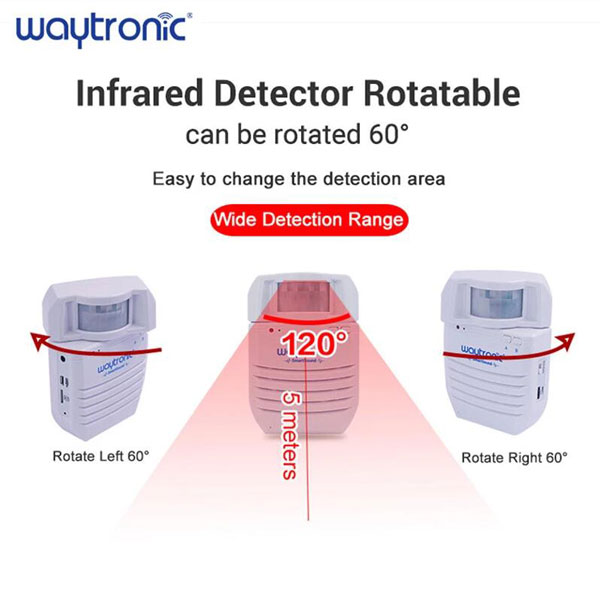

★The infrared detector can be rotated around 60 °, easy to adjust the detectable area.

★Customizable: Choose your own MP3 audio or record your voice via microSD card (no built-in mic)

★Micro SD card slot. Can insert micro SD card.

★Micro USB port, for USB power supply.

★Audio files can be updated via micro SD card.

★Built in 32Mbit(4Mbyte) Flash memory.

★ Motion MP3 Audio Player，Can set playing modes, such as single play, sequential play and random play mode.

★Support to play MP3 audio only. Sound quality is better than the ordinary sound.

★Support external micro SD card or internal Flash playback, play micro SD card first (support hot plug).

★Can copy the audio files from micro SD card to FLASH memory.

★Built in charging circuits, auto sleeping, low power consumption, long standby time.

★Have audio port: can connect external speaker to have louder sound.

★The read way of the voice address is confirmed according to the file storage order.

★Replace voice files of FLASH via micro SD card .

★Built in power amplifier and 2W/8Ω loudspeaker, available to adjust volume

★Built in DC3.7 lithium battery.

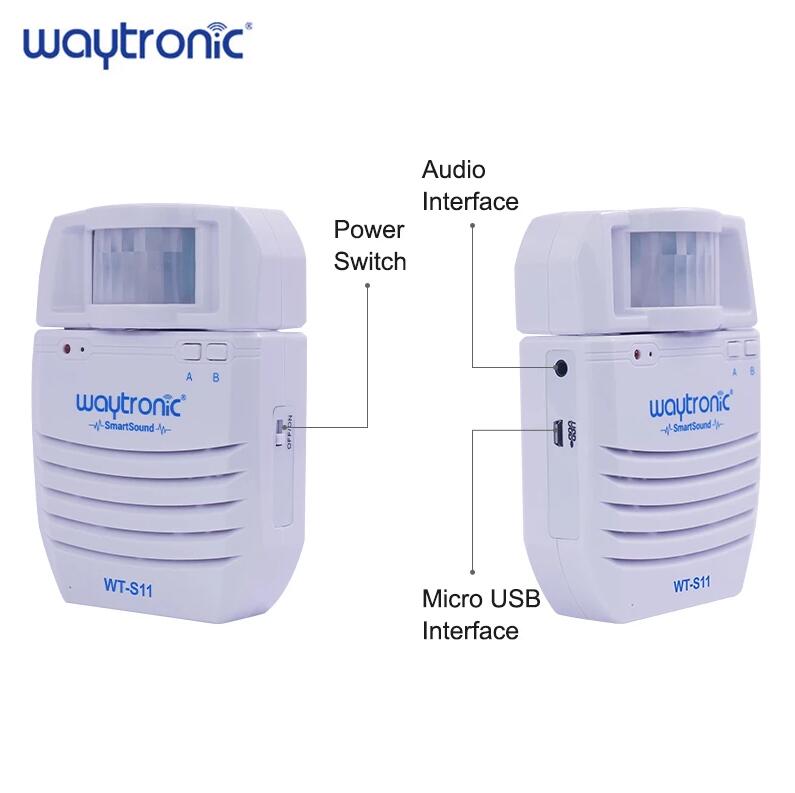

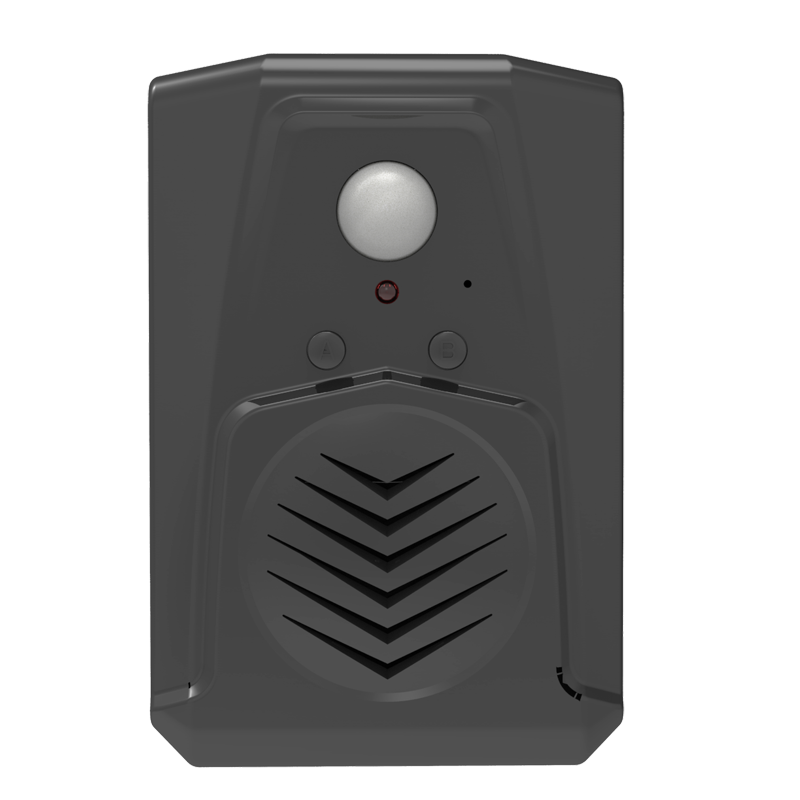

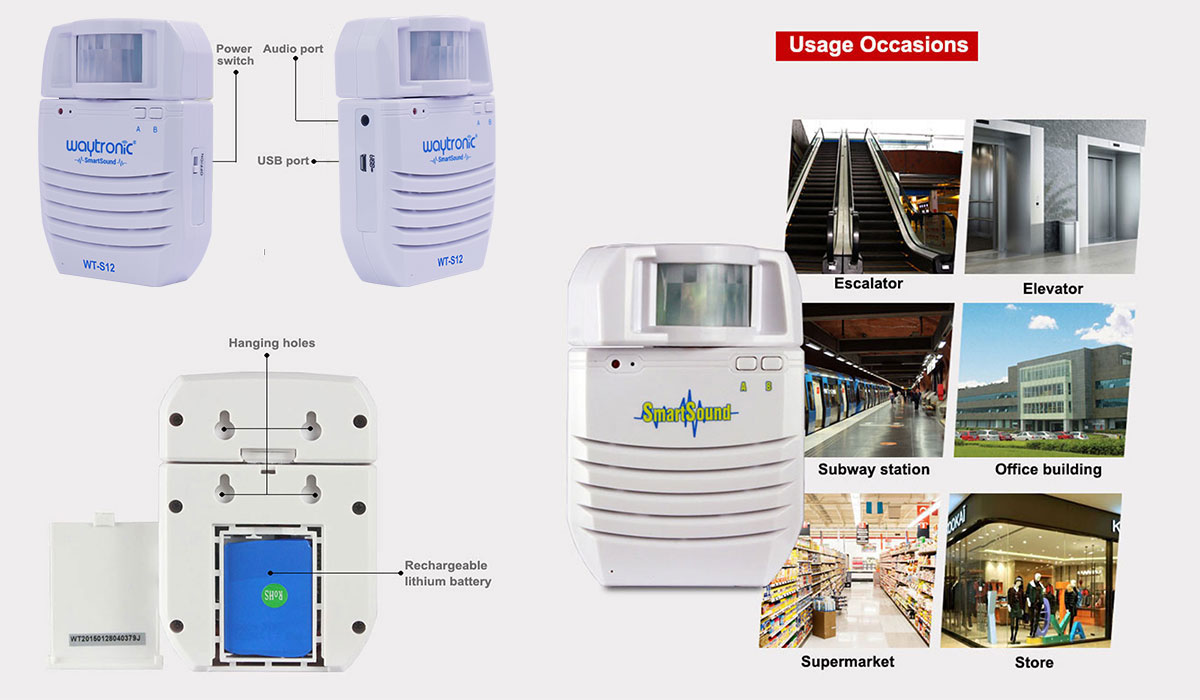

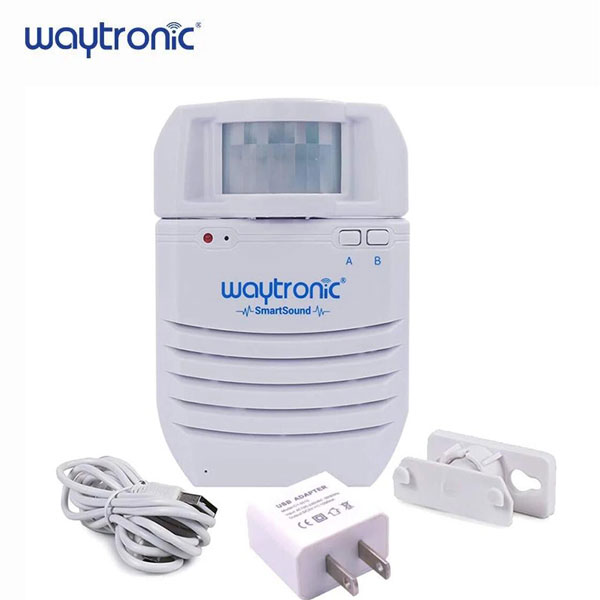

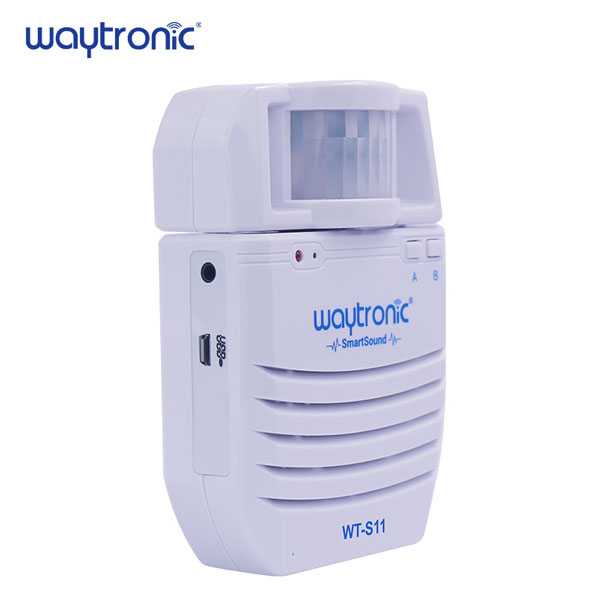

Pictures of this Two way recognition voice prompter

Parameters of this Two-way recognition voice prompter

Model Number:Smartsound V2.06
Power supply:DC 5V, built in lithium battery
Feature:support micro SD card playback
Support:voice replacement
Power adpater:provided, EU plug or flat plug
Audio format:MP3
Bit Rate:16~320Kbps
Certificate:CE, FCC, RoHS
Memory:built in 4MByte flash
Audio port:can connect external speaker
Power supply mode: DC5V stabilized voltage supply / 3.7V lithium battery
Working Current: in sleep state, lithium battery ≤46uA; in playing state, lithium battery ≤320mA
Audio Output power: 8Ω/2W(Typical Value)
Infrared Induction Range: ≤5 meters (horizontal direction 120°)
